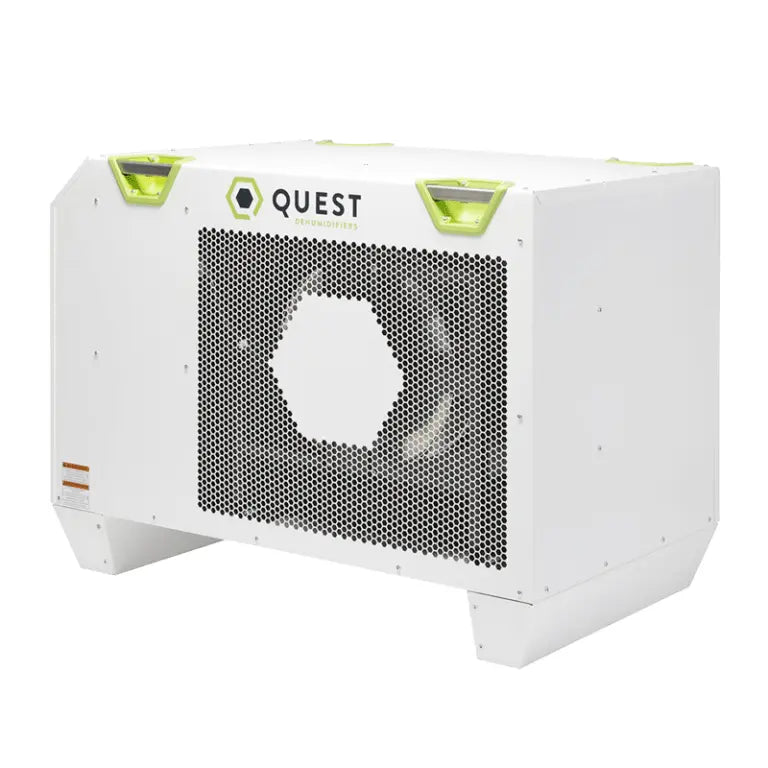

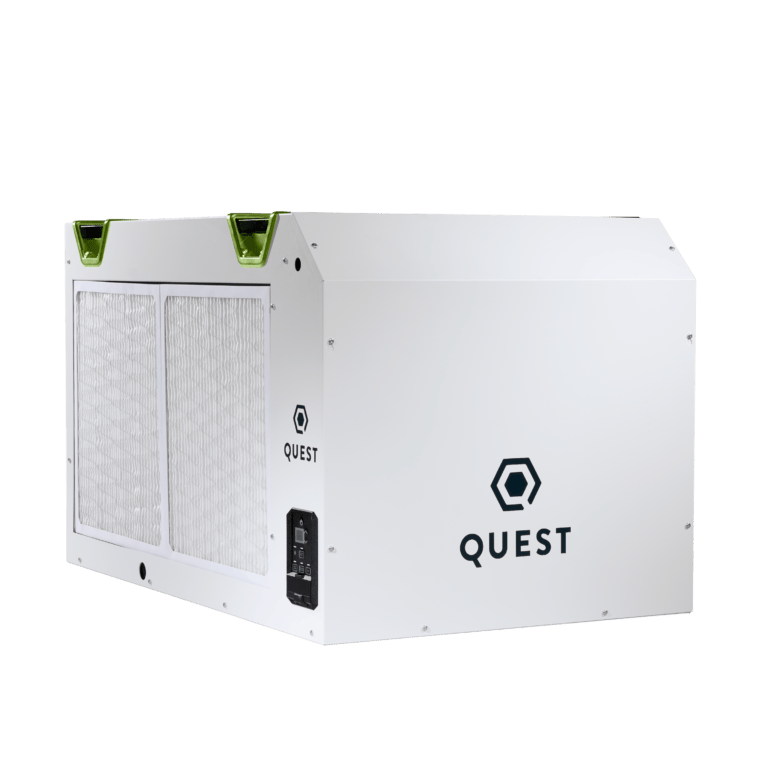

The Quest 506 277V dehumidifier offer the same quality and features as the original Quest 506 220/240V units, but instead offer 277V voltages for use in industrial facilities.
Built with patented M-CoRR technology, this unit is your route to achieving an optimum moisture level, crucial for operations in agriculture, industrial manufacturing, and other moisture-sensitive industries. With its 506-pint-a-day capacity, you can easily maintain the right amount of humidity round the clock.
But even with the Quest 506 running round-the-clock, it still manages to pull more water for every kilowatt-hour, giving you more savings. And with the MERV 13 filtration system, contaminants stay away from your controlled environment.
This dehumidifier is also easy to install and use and use. With integrated handles and hang points, the Quest 506 can be suspended overhead to free up valuable floor space or placed on the floor for no-frills operations. The industry’s lowest amp draw ensures less heat output, preserving a comfortable ambiance.
The Quest 506 meets California Title 24 requirements, is UL-certified and ETL-listed, and has a five-year warranty.
The Multi-Coil Refrigeration allows the Quest 506 to achieve a remarkable 506 pints capacity with an 8.1 pint per kilowatt hour efficiency.
Thanks to the superior MERV-13 filtration on the Quest 506, you get healthier air quality, effectively removing dust, pollen, mold, and bacteria.
The Digital Control on the Quest 506 makes operation effortless and comes with a self-diagnostic system and a dark mode to reduce eye strain in the dark.
The Quest 506 is Title 24 compliant, making it one of the energy-efficient dehumidification systems available today.
The Quest 506 is made with anti-corrosive material, making it ideal for dehumidifying work.
Suspend the Quest 506 or leave it freestanding; the choice is yours, thanks to the compact design.
| CFM: | 1350 @ 0.0” WG |
| POWER: | 2700 Watts |
| SUPPLY VOLTAGE: | 277 VAC 1 Phase - 60 Hz |
| CURRENT DRAW: | 10.0A |
| RATED CURRENT DRAW: (104 F | 36%) | 12.2A |
| MINIMUM CIRCUIT AMPACITY (MCA): | 16.3A |
| MAXIMUM OVERCURRENT PROTECTION | 25 |
| RECOMMENDED BREAKER SIZE: | 20A |
| ENERGY FACTOR (L/KWH): | 3.8 L/kWh |
| OPERATING TEMP: | 56 F Min – 95 F Max |
| WATER REMOVAL (PINTS/DAY): | 506 |
| EFFICIENCY (PINTS/KWH): | 8.1 |
| AIR FILTER (MERV-13): | Size: 18” x 20” x 2” |
| POWER CORD: | 12ga 10’, NEMA L7-20P |
| DRAIN CONNECTION: | 3/4” Threaded NPT |
| REFRIGERANT TYPE: | R410A |
| REFRIGERANT AMOUNT: | 4 lb 8 oz |
| WIDTH: | 28.9” |
| HEIGHT: | 34.1” |
| LENGTH: | 44.8” |
| WEIGHT: | 280 lbs |
| SHIPPING WEIGHT | 340 lbs |
Quest offers a 5-year warranty. This does not include user error or operator abuse.
