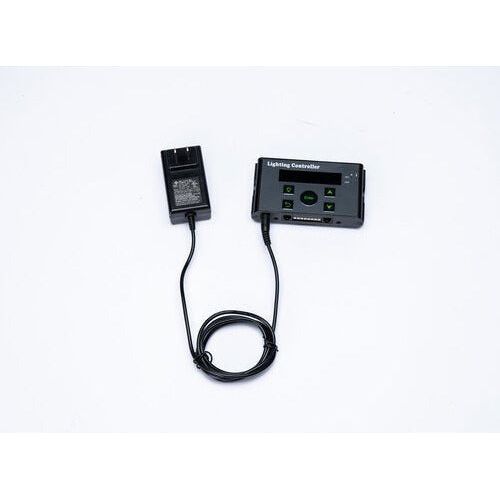

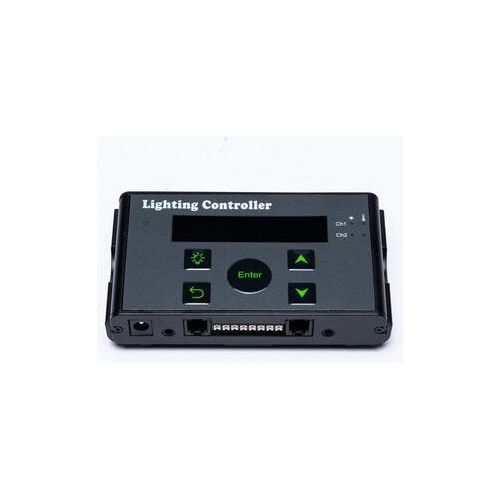

We know you've been looking for a light controller that does it all, and we think we've found it. Introducing the Lighting Control CHL-Pro, a dual-channel light controller that can control up to 80 fixtures and ballasts.
The Lighting Control CHL-Pro is the product that provides the solution to your problems. With this dual-channel controller, you may control up to 40 fixtures or ballasts in a single room, giving you the ability to operate 80 in a single room. In addition to this, it comes equipped with an External Contact Module (ECM) that enables you to connect other accessories, such as alarms that sound when the temperature drops or the power goes out.
And the best part? It's compact and easy to install! You'll be able to install this bad boy yourself in no time flat—and then get right on controlling those lights.
The Electrivo Pro Controller lets you control up to two sets of grow lights, with up to 40 grow lights per set. It also notifies you of any power interruption so that you can take action.
Programming your grow lights is easy with the Electrivo Pro Controller. You can focus on more important things instead of figuring out how to use the grow lights.
The Electrivo Pro Controller lets you set different lighting schedules based on your plants' needs.
The Electrivo Pro Controller has a built-in External Contact Module (ECMI) that lets you connect external equipment, such as alarms, to trigger under certain conditions. You can connect up to two ECM devices to this controller.
Keep track of any errors as the Electrivo Pro Controller logs all errors and issues that may arise.
The Lighting Control CHL-Pro is a dual channel light controller. Each of the controller's two channels can control up to 40 fixtures or ballasts.
It is possible to use those channels to control fixtures in two completely independent rooms, or to control up to 80 fixtures in one room.
With an External Contact Module (ECMI auxiliary equipment can be controlled. Up to two ECMs can be connected. An alarm can be connected to go off at temperature shutdown or power outage. These devices need to be purchased separately.
Temperature monitoring in both Celsius and Fahrenheit
Auto-dim and shutdown controlling available.
Shutdown, sensor failure, or power off alarms will always be logged. Access the log by opening the menu and select ‘Logs’.
If you want to use the controller to control for example a CO2 source, a light or watering unit, or a heater, you'll need an External Contactor Module or ECM. You can control up to two ECMs. ECM1 follows channel 1, ECM2 follows channel 2.
Temperature: 0-35 °C / 32 - 95 °F
Operating humidity [non-condensing): <80%
Find a suitable place for the temperature sensor and the controller. Hang the sensor between the plants on average canopy height and preferably not against the wall. Do not position it in direct airflow.
If you are using another climate control system, hang it close to the sensor of that system. If necessary, the sensor cable may be lengthened an extra 5 meter with a standard 3.5 mm jack extension cable. A sensor with a cable length of 30 meter is also available.
Indoor Farming
| Description | Specification |
|---|---|
| Controller Dimensions (L x W x H) | 110 x 21 x 65 |
| Weight | 115 gram |
| Power Supply | Adapter: 100V-240V AC 50/60hz - 15V DC (1000mA) |
| Maximum Control Voltage | 11.5V |
| Maximum Voltage/current Alarm contacts (NO/NC) | 13.5V/50mA |
| Maximum Cable Lenght per port | 100m (328ft) / 250m (820ft)* |
| Maximum number of Ballasts per port | 40 | 250* |
| Total number of Ballasts per controller | 80 | 500* |
| Temperature Range | 0-35°C / 32 -95 °F |
| Operating Humidity (Non-Condesing) | <80% |
Electrivo offers a 1-year warranty for the Controller. Warranty does not cover user error or operator abuse.
